Reliable RF Shielding

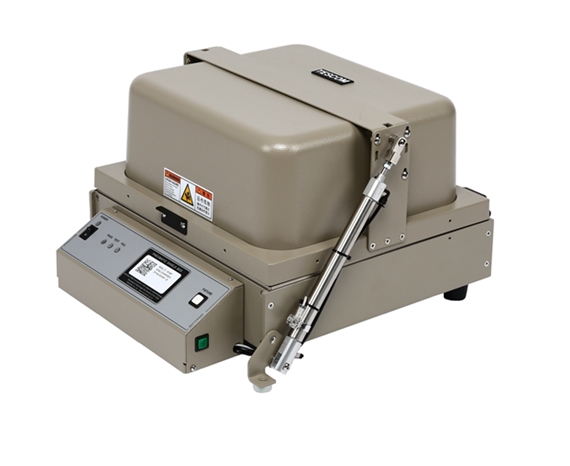

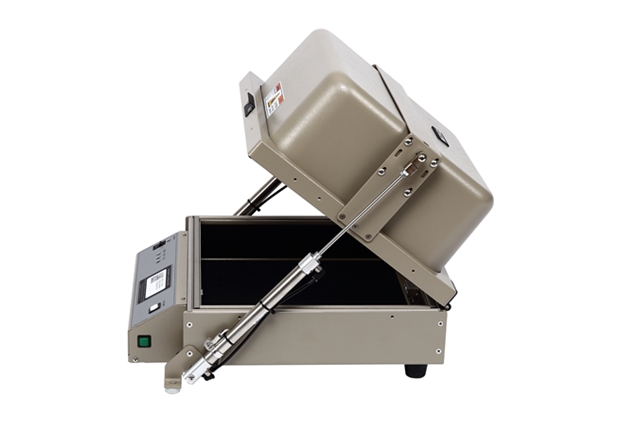

Pneumatic control of lid open-close and optional test fixture motions
EMI filters on all Data and DC lines
Easily customizable to meet various test needs
RS-232C Remote Control
Red and Green LED’s for Pass/Fail indication
◈ Mechanical Specifications

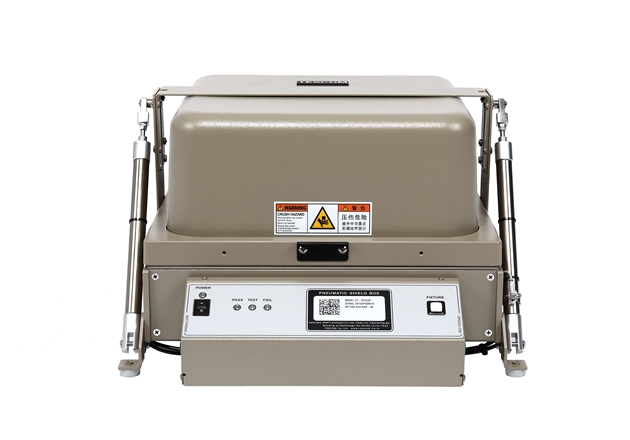

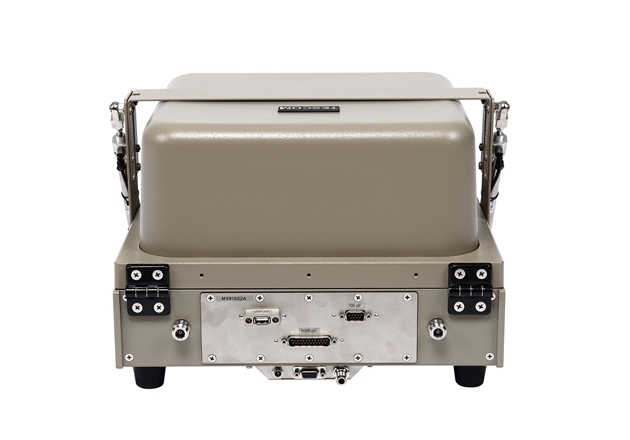

RF Connectors without I/O interface panel : two(2) N(f) outside and SMA(f) inside
Line voltage : DC 24 V, Max. 2 A
Power consumption : Max. 1.5 W
Remote control : RS-232C, 3 wire, DB9(s)
Air connection
- Main connector : 6 mm OD hose, one-touch push-on fitting
- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting
- Input air pressure : 5 to 10 bar
Dimensions
- Inside : 328(W) x 298(D) x 206(H) mm
- Outside : 420(W) x 430(D) x 260(H) mm, lid closed. 430(H) mm, lid open.
Weight : Approx. 13 kg
Packing (The size or weight of a package may vary on how to pack a package.)
- Size : 480(W) x 545(D) x 365(H) mm
- Weight : Approx. 15 kg
◈ Dimensions
◎ TC-5916AP Outer Dimenstion: 420(W) x 430(D) x 260(H) mm, lid closed. 422(H) mm, lid open.
◎ TC-5916AP Inner Dimension: 310(W) x 280(D) x 200(H) mm
◈ Typical RF Shielding
The shielding effectiveness below is measured when the blank panel is mounted;
other I/O interface panel results a different shielding effectiveness of the shield box.
※ Frequency / Shielding effectiveness (dB)
- 100 to 2000 MHz : > 70 dB
- 2000 to 3000 MHz : > 70 dB
- 3000 to 6000 MHz : > 60 dB
