TC-93020A

天线耦合器
TC-93020A

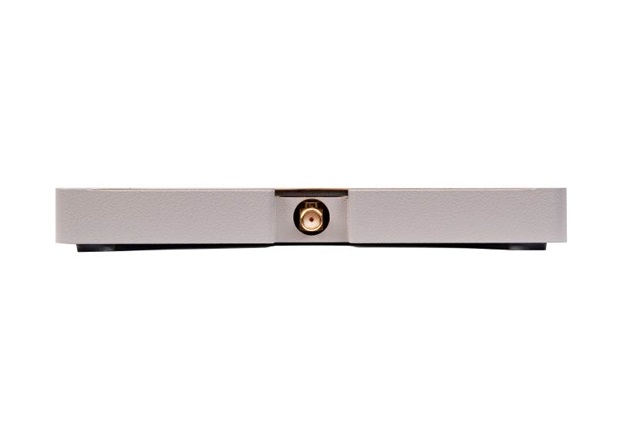

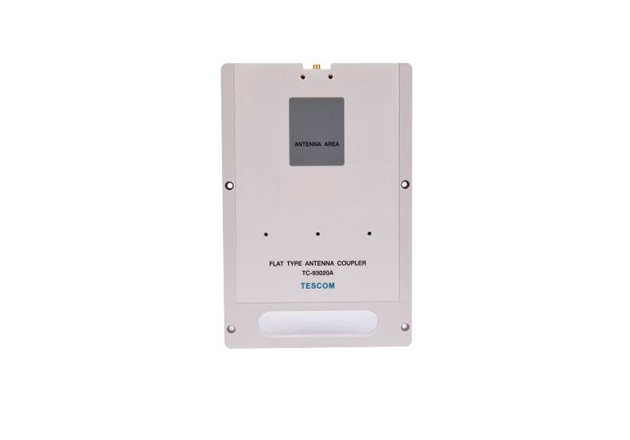

TC-93020A, Flat Type Antenna Coupler, performs RF Coupling for Near Field Electromagnetic Field of DUT as installed in the TSCOM’s RF Shield Box. It is stable and has steady RF Coupling characteristics within range of 80 ~ 2650 MHz.


Key Features




Specifications

Frequency Range: 80 ~ 2650 MHz

RF Connector: SMA(f)

Dimension: 130 (W) x 210 (D) x 12 (H) mm

Weight: 1 kg

Terminal: 50 Ohm

VSWR: better than 1 : 1.7
