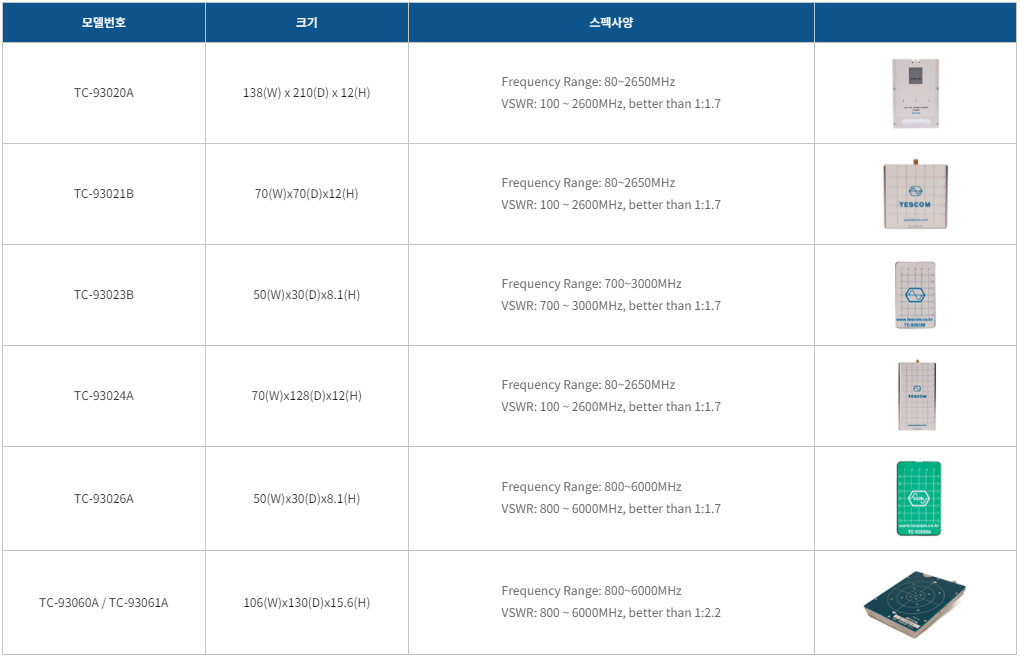

天线耦合器总表

检测仪器设备 > TESCOM > 天线耦合器总表

天线耦合器总表

Key Features
  • Supports wide frequency range from 80 MHz to 6000 MHz

  • Applicable to test 2G, 3G and 4G network device

  • Applicable to test GPS/GLONSAS, Bluetooth, Wi-Fi, WiMAX, LTE network device

  • Performs effective and stable RF Coupling

  • Optimizes RF test environments with TESCOM’s Shield Box and Fixture


FIXTURE

Basically, TESCOM’s acryl fixtures hold DUT stable in a certain position. As TESCOM’s F59106A and F59161A are flexible fixtures, they hold various DUTs that are different in sizes and shapes in the shield box as shown below. As TESCOM’s fixtures are designed with an internal locking block, a tester can find the most optimized position of DUT easily in a short time.

F59106A + TC-93026A+ TC-5910D
F59161A + TC-93026A + TC-5916A
