TC-5901C

TC-5901C

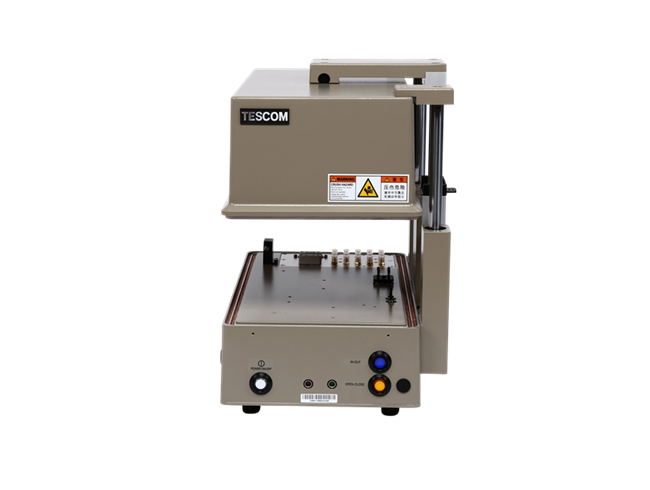

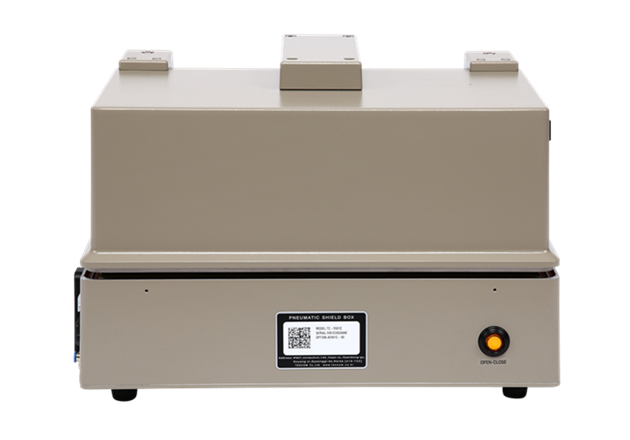

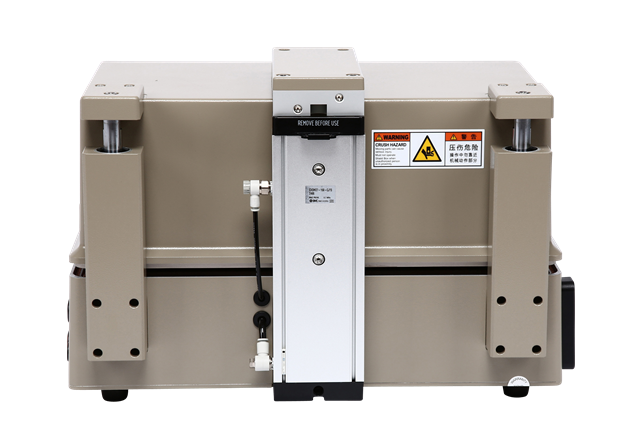

气动屏蔽箱
Pneumatic Shield Box
TC-5901C
Key Features


◈ High RF Shielding
◈ Pneumatic control of lid open-close and optional automatic test fixture motions
◈ EMI filters on all data ports and power line
◈ Remote operation by RS-232C

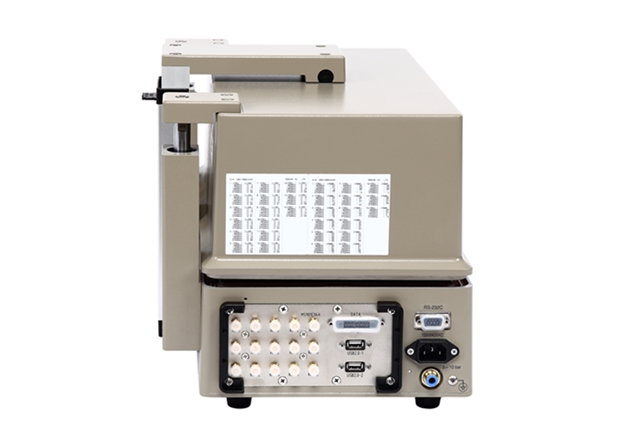

◈ Modular I/O design for possible customization of data and RF connection
◈ Fixture control air outputs for custom test fixture

◈ Narrower side front

◈ Provide shield protective cover for safety.
◈ Red and Green LED’s for Pass/Fail indication
◈ Dual pressure control and Lid Down Sensor for safety


Specifications

◈ Mechanical Specifications


  Line voltage : 100 - 240 VAC, 50/60 Hz, 15 watt max.

  Data Line capacity : 100 VDC, 5 Amps max.

  Remote control : RS-232C, 3 wire, DB9(s)

  Air connection

    Main connector : 6 mm OD hose, one-touch push-on fitting

    - Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

    - Input air pressure : 5 to 10 bar

  Dimension

    - Inside : 407(W) x 206(D) x 133(H) mm

    - Outside : 459(W) x 300(D) x 300(H) mm, lid closed. 449(H) mm, lid open.

  Weight : Approx. 17 kg

  Packing (The size or weight of a package may vary on how to pack a package.)

     - Size : 620(W) x 430(D) x 440(H) mm

    - Weight : Approx. 21 kg



◈ Dimensions


 ◎ TC-5901C Outer Dimension


                                      < Front >                                                      < Side >









 ◎ TC-5952C Inner Dimension


                                      < Top >                                                        < Side >





◈ Typical RF Shielding



 The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.



   Frequency / Shielding effectiveness (dB)

   - 100 to 2000 MHz : > 70 dB

   - 2000 to 3000 MHz : > 60 dB

   - 3000 to 6000 MHz : > 50 dB
